#WTF #Hardware 这可能是麦当劳对讲机全网首拆 (x)

#转发 #WTF #Hardware

看来这边的拆解还真不是全网首拆。

来看看其他大佬的拆解和分析：
https://www.tgoop.com/sohadays/5137

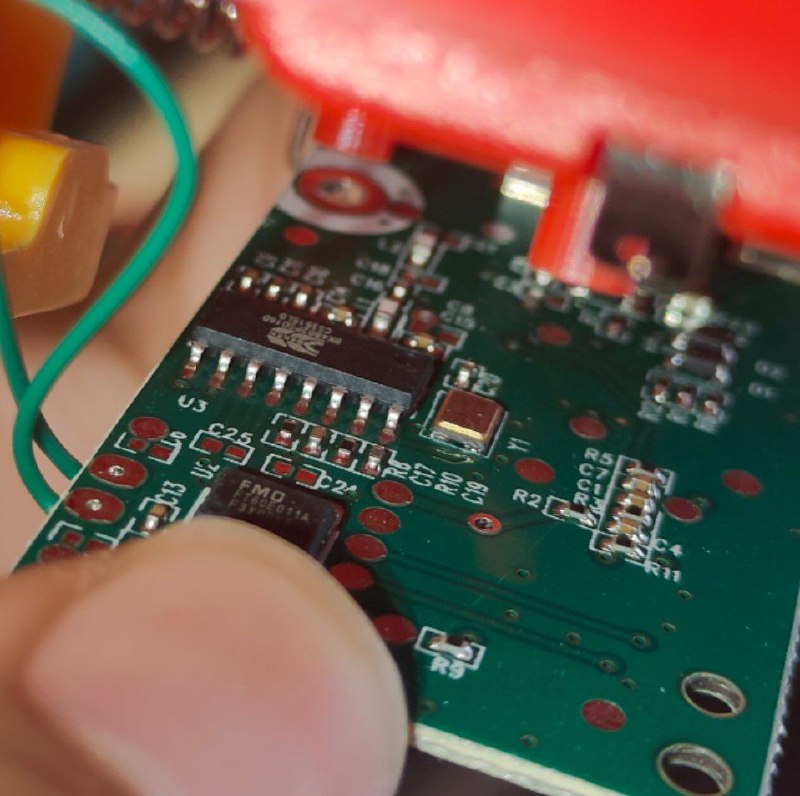

应群友要求对麦麦对讲机进行了拆解。电池插片是焊上的，因为只是想看看 IC，所以就不拆焊了。
MCU：
Fremont Micro Devices 的 FT60E011A。
8 位指令集，内置 flash 和 EEPROM。
射频：
BEKEN 的 BK4802P。
这是一颗专为玩具对讲、玩具遥控设计的 IC，支持 FM 和 ASK 的调制解调。支持 19-33、38-66、127-177、380-530MHz 多个频段，和 12.5/25kHz 两种信道间隔。
片上带了一个 10dBm（即 10mW）的功放，所以该玩具最大只有…

🤣3
